By the end of today you can

• explain why reproducibility is a matter of research integrity;
• write a Quarto document with text, Python code, dynamic results, tables, figures, citations, and equations;
• render it to HTML, Word, and PDF;
• keep package versions with virtual environments and requirements.txt, and report them;
• build a small Shiny for Python dashboard;
• apply open science practices: sharing, protecting participants, preregistering, citing software.

Three weeks before the deadline

Twelve duplicated students are found in an early version of the survey export.

They were removed in Chapter 3, but some tables were copied into the draft before that.

Now every number copied by hand from Python into Word must be checked and replaced, one at a time.

Reproducible and replicable

Reproducibility is the minimum standard: if results cannot be recomputed, asking whether they replicate is pointless.

Most irreproducibility is everyday friction

• a table copied before the data was corrected;
• a spreadsheet cell edited by hand;
• menu clicks nobody wrote down;
• a package that changed its default.

Habits from earlier chapters already guard against much of this.

Habits you already have

Today adds the last links: results placed into the report automatically, fixed software versions, and responsible sharing.

Documents that contain their own analysis

Quarto documents (.qmd) mix text and code.

When rendered, the code runs and its numbers, tables, and figures are placed into a web page, Word document, PDF, slide show, or book.

This course’s book and these slides are written in Quarto. Jupyter Notebooks (.ipynb) are popular for exploration, but Quarto plain text is vastly cleaner for Git and reproducible reports.

A complete Quarto document

---
title: "Three friends' sleep"
format: html
jupyter: python3
---

My three friends slept 6.3 hours on average last night.

```{python}
import numpy as np
sleep = [6.5, 7.0, 5.5]
print(round(np.mean(sleep), 1))
```

The three parts

In VS Code or Positron: click Render or run quarto render report.qmd.

Inline code: numbers never typed by hand

Inline expressions inside a sentence are evaluated and replaced by their result:

The sample included 600 graduate students from 5 faculties.

If a student is added or removed, the sentence changes with the data.

This is the permanent cure for the problem three weeks before the deadline.

What happens when you render

flowchart LR
  A["report.qmd<br>text + code"] --> B["Jupyter runs<br>the Python code"] --> C["report.md<br>text + results"] --> D["Pandoc"]
  D --> E[HTML]
  D --> F[Word (.docx)]
  D --> G[PDF]

The code runs from the beginning every time. Anything created by hand in an interactive terminal makes rendering fail: a built-in reproducibility test.

A results chapter in Quarto

---
title: "Chapter 4: Results"
format: docx
jupyter: python3
bibliography: references.bib
execute:
  echo: false
---

```{python}
#| label: setup
#| message: false
import pandas as pd
import data2thesis as dt
students = dt.students
semesters = dt.semesters
```

The sample included 600 graduate students from 5 faculties. Table @tbl-faculty
shows wellbeing by faculty, which declined as in earlier studies [@author2020].

format: docx gives the Word file supervisors want; echo: false hides the code but keeps it in the .qmd.

A numbered table from code

```{python}
#| label: tbl-faculty
#| tbl-cap: "Wellbeing in the first semester, by faculty."
merged = semesters[semesters['semester'] == 1].merge(students, on='student_id')
summary = (
    merged.groupby('faculty')
    .agg(Students=('student_id', 'count'),
         Mean=('wellbeing', 'mean'),
         SD=('wellbeing', 'std'))
    .reset_index().round(1)
)
summary
```

Chunk options start with #|. A tbl- or fig- label makes a numbered, cross-referenced item.

What the reader sees

The sample included 600 graduate students from 5 faculties. Table 1 shows wellbeing by faculty.

References and citations

@book{wickham2023,
  author    = {Wickham, Hadley and Çetinkaya-Rundel, Mine and Grolemund, Garrett},
  title     = {R for Data Science},
  publisher = {O'Reilly Media},
  year      = {2023}
}

[@wickham2023] in the text becomes a formatted citation, and the reference list is added.

Zotero, Mendeley, and EndNote export BibTeX. A csl: line switches between APA, Vancouver, Harvard, and thousands more.

Equations

$$
\text{logit}(p) = \beta_0 + \beta_1 \times \text{stress} + \beta_2 \times \text{support}
$$

\[ \text{logit}(p) = \beta_0 + \beta_1 \times \text{stress} + \beta_2 \times \text{support} \]

LaTeX notation, between dollar signs. Renders identically in HTML, Word, and PDF.

One line changes the output

A whole thesis can be a Quarto book, one .qmd per chapter.

Parameterised reports

---
title: "Wellbeing report"
format: html
jupyter: python3
params:
  faculty: "Education"
---

```{python}
faculty_data = semesters.merge(students, on='student_id')
faculty_data = faculty_data[faculty_data['faculty'] == params['faculty']]
```

This report describes the students of the Faculty of Education.

quarto render faculty-report.qmd -P faculty:"Health Sciences"

One report, five deans, five versions.

Packages change

A default changes, or a function disappears, and an analysis that runs today may fail, or give different results, in two years.

# 1. Create a virtual environment
python -m venv .venv

# 2. Freeze installed package versions
pip freeze > requirements.txt

# 3. Later or on another computer: restore exact versions
pip install -r requirements.txt

requirements.txt lists every package and version. Share it with your code.

Report software versions

import sys, statsmodels, sklearn, pandas
print(f"Python: {sys.version.split()[0]}")
print(f"pandas: {pandas.__version__}")
print(f"statsmodels: {statsmodels.__version__}")

Name the versions of Python and key analysis packages in the thesis methods section.

Shiny: let readers ask their own questions

A report answers its author’s questions. Readers want “What about my faculty?”

Reactivity

flowchart LR
  F["Input:<br>faculty"] --> S["@reactive.calc<br>selected() data"]
  S --> P["Output:<br>trend plot"]
  S --> T["Output:<br>summary table"]
  M["Input:<br>measure"] --> P
  M --> T

When an input changes, Shiny reruns only what depends on it.

The dashboard: layout

from shiny import App, render, ui, reactive
import pandas as pd

app_ui = ui.page_sidebar(
    ui.sidebar(
        ui.input_select("faculty", "Faculty", choices=faculties),
        ui.input_radio_buttons("measure", "Measure", choices=measures)
    ),
    ui.card(ui.output_plot("trend")),
    ui.card(ui.output_table("summary")),
    title="Graduate Student Wellbeing"
)

The dashboard: server

def server(input, output, session):
    @reactive.calc
    def selected():
        return wellbeing_data[wellbeing_data["faculty"] == input.faculty()]

    @render.plot
    def trend():
        df = selected()
        meas = input.measure()
        fig, ax = plt.subplots(figsize=(6.5, 3.8))
        sns.lineplot(data=df, x="semester", y=meas, hue="study_mode", ax=ax)
        return fig

app = App(app_ui, server)

@reactive.calc refilters only when the faculty changes.

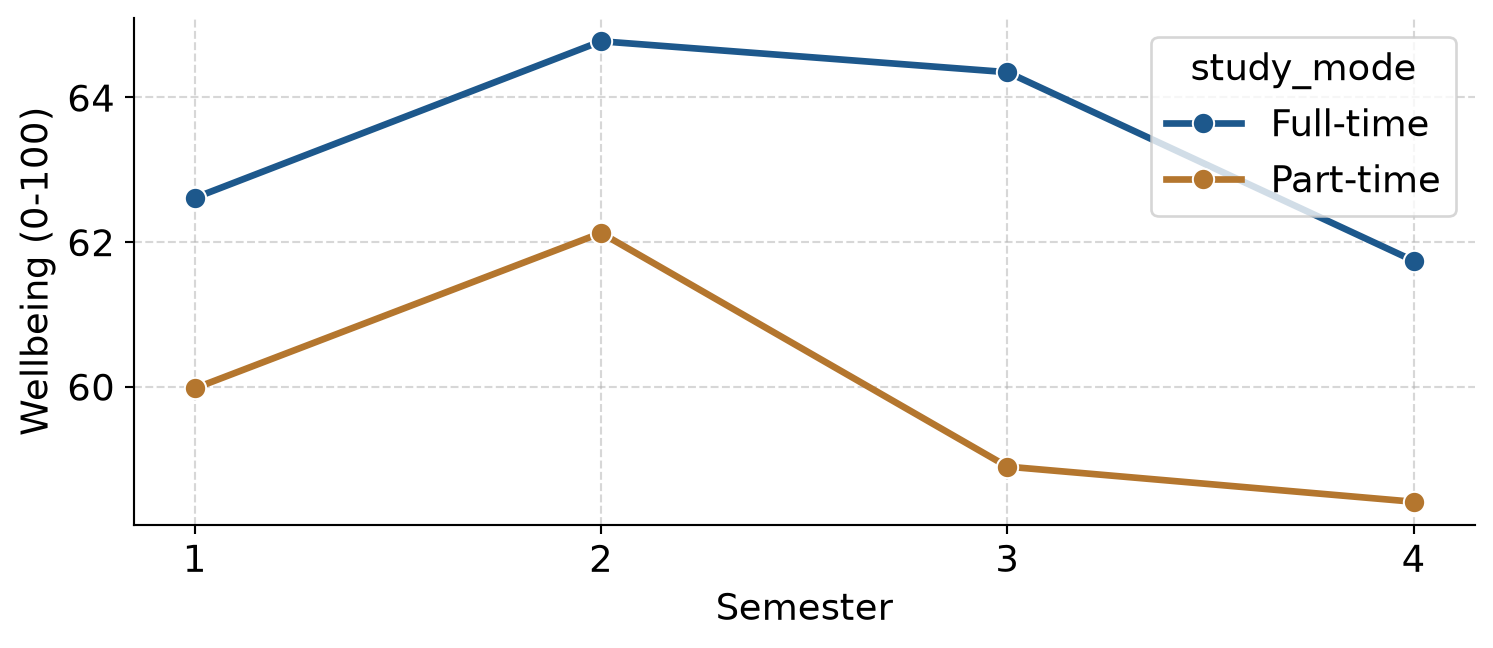

What the dashboard draws

Education, wellbeing. Host on shinyapps.io or Posit Connect; Shinylive runs Python apps entirely in the browser.

Open science: sharing data and code

OSF and Zenodo give a permanent DOI. A licence (CC BY for data, MIT for code) states what others may do.

Removing names is not enough

Only 3 students are part-time male students with children in Education.

In a small department, such a description points to recognisable individuals.

Protecting participants

• group categories or remove unneeded variables;
• share summary data only;
• follow the consent form: if it promised anonymised data, that is all;
• when data cannot be shared, a synthetic dataset lets others run the code.

The garden of forking paths

# Five defensible analyses of the exact same data:
# 1. Standard t-test
# 2. Outliers trimmed (|z| < 2)
# 3. Log-scale t-test
# 4. Mann-Whitney U rank test
# 5. Linear model with covariate

No real group difference. Five defensible analyses, 1,000 simulated studies.

Choosing afterwards inflates false positives

No individual choice is wrong. The problem is choosing after seeing the result.

Preregistration

• record hypotheses, design, and planned analysis before seeing the data;
• in a time-stamped registry: OSF Registries or AsPredicted;
• confirmatory analyses follow the plan; exploratory ones are labelled as such;
• a registered report is accepted before data collection, whatever the results.

Citing software

“Analyses were carried out in Python version 3.13 (Python Software Foundation), with data manipulation in pandas (McKinney, 2010), statistical tests in SciPy (Virtanen et al., 2020), and regression in statsmodels (Seabold & Perktold, 2010).”

Open-source package developers are researchers who depend on being cited.

In your field: psychology and medicine

In 2015, 100 psychology studies were repeated.

Small samples, flexible analyses, and selective publication. The response: preregistration, registered reports, and sharing. Medicine has required trial registration since 2005.

Keeping a history with git (optional)

Code editors (VS Code, Positron) have visual Git buttons. List private data in .gitignore.

Practical lab: the Chapter 17 playground

Work through the playground exercises in your browser, with hints and solutions.

The Quarto and Shiny for Python exercises run from the downloadable project (chapter17.zip).

Practical exercises 1–3: Quarto

1. Render the tiny document, change a value, and round with inline code.
2. Turn an earlier analysis into a report with a numbered table and figure.
3. Add references, cite them, and switch the citation style.

Practical exercises 4–6: Shiny and open science

4. Add a slider for the semesters shown in the dashboard.
5. Which variable would you remove or group before sharing, and why?
6. Add a sixth analysis to forking_paths(): what happens to false positives?

Try this yourself

Take one results paragraph from your own thesis draft:

• find every number typed by hand;
• replace each with dynamic inline code;
• give each table and figure a label and a cross-reference;
• render to Word, change the data, and render again.

Troubleshooting guide (Part 1)

Troubleshooting guide (Part 2)

Completion checklist

• every number in the text comes from dynamic code;
• tables and figures are labelled and cross-referenced;
• the document renders from a clean session;
• package versions are recorded in requirements.txt and reported;
• software and libraries are cited;
• shared data has no small identifying cells;
• confirmatory analyses were planned in advance.

Misconceptions to leave behind (Part 1)

Misconceptions to leave behind (Part 2)

The chapter in one sentence

Keep text, code, and results together so the whole report rebuilds from the raw data with one command, and share it in a way others can check and participants can trust.

Next: Chapter 18

The next chapter looks at AI and Natural Language Processing in research:

• coding open-ended responses with AI;
• inter-rater reliability (Cohen’s kappa);
• text embeddings and semantic similarity;
• prompt engineering and LLMs as research assistants;
• responsible AI disclosure in academic thesis work.

Questions

How many numbers in your current draft were typed by hand?

What would it take to rebuild your results from the raw data tomorrow?
